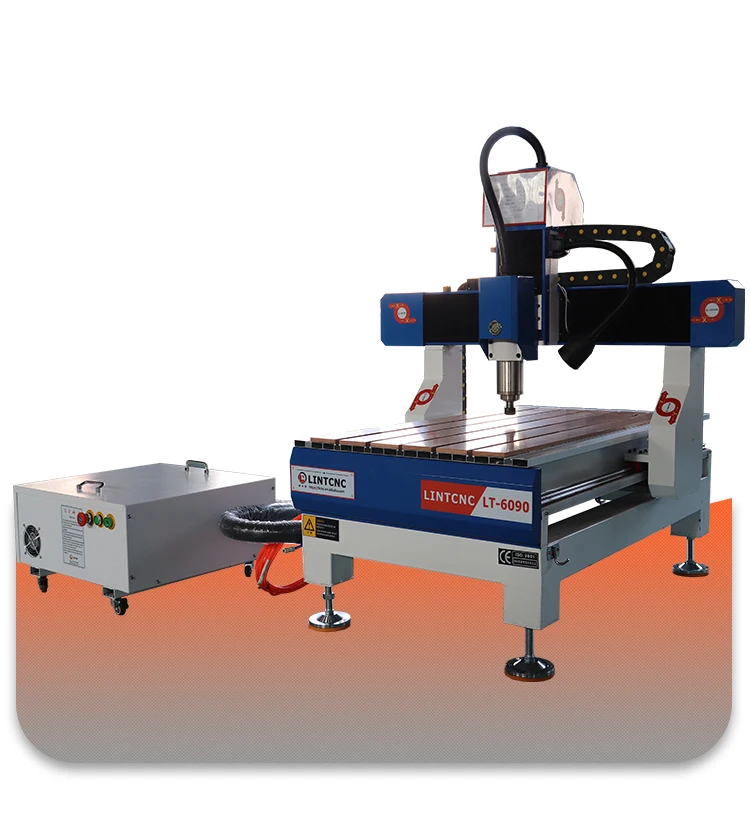

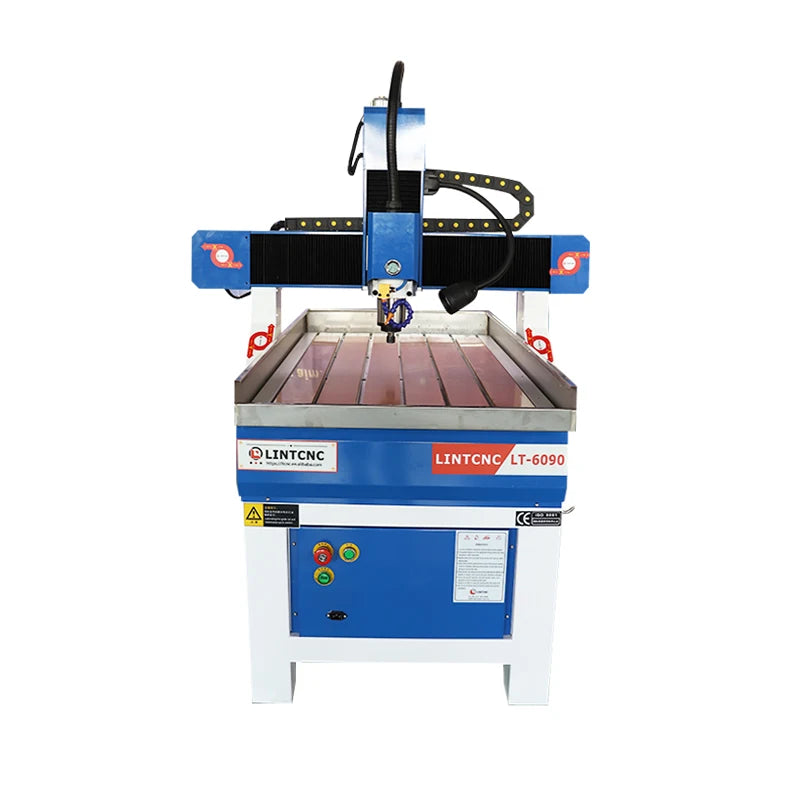

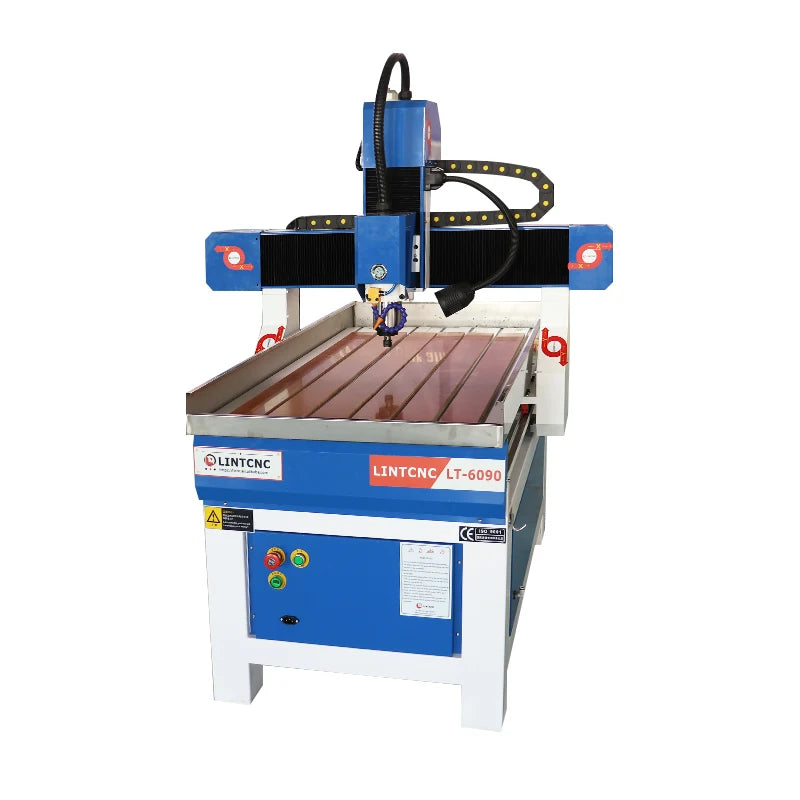

TEBAK Cnc Router Machine 1212 6090 Woodworking Machines Vacuum Table Desktop Milling Cnc Mill 4 Axis 3D Wood Drill Cutter
Product Description
Product Description
Product Application
1.Advertisement: engraving and cutting various labels and number plate.
2.Art crafts: engraving characters of any languages and graphics on gifts and souvenirs
|
Woking area
|
600*900*200mm
|
|
|
|
|
||||
|
Table style
|
Aluminum T-slot table+PVC
|
|
|
|
|
||||
|
Table surface
|
Cast aluminum
|
|
|
|
|
||||
|
Spindle
|
1.5KW water cooling spindle
|
|
|
|
|
||||
|
Spindle rotating speed
|
0-24000rpm
|
|
|
|
|
||||
|
Collect size
|
ER16
|
|
|
|
|
||||
|
Guide rail
|
Hiwin linear square guide rail
|
|
|
|
|
||||
|
Driving method
|
Taiwan Original TBI ball screw
|
|
|
|
|
||||
|
Motors and drivers
|
86BYG-450B stepper motor and leadshine drivers MA860
|
|
|
|
|
||||
|
Control system
|
NCstudio control system
|
|
|
|
|
||||
|
Invert
|
Fuling invert
|
|
|
|
|
||||
|
Max.working speed
|
<7000mm/min
|
|
|
|
|
||||
|
Instruction formate
|
G code*.u00*.mmg*.plt
|
|
|
|
|
||||
|
Woking voltage
|
AC220V,single phase,50-60Hz
|
|
|
|
|
||||
|
Standard software
|
Artcam 2010
|
|
|
|
|
||||
|
Compatible software
|
Type3
|
|
|
|
|
||||
|
Control Cabinet
|
Independent
|
|
|
|
|
||||
|
Other
|
Tool sensor;Tool box;English manuals etc.
|
|
|
|
|
||||
|
Optional parts
|

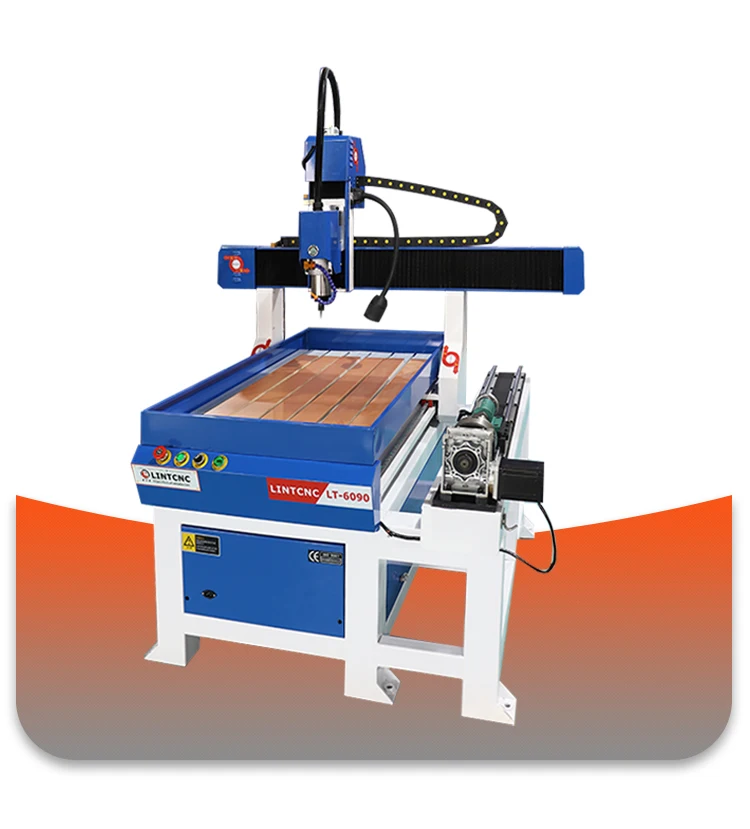

1)2.2kw water cooling spindle; 2)Rotary axis for engraving round wood(80mm//100mm/150mm) diameter; 3)Mach3/DSP control system; 4)Stainless water tank. |
|
|
|
|
||||
Main Features
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. Use high speed drive motor,also servo motors for optional.
3. Memory function ensures the processing point when the blade is broken or having to postpone the process.
4. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.

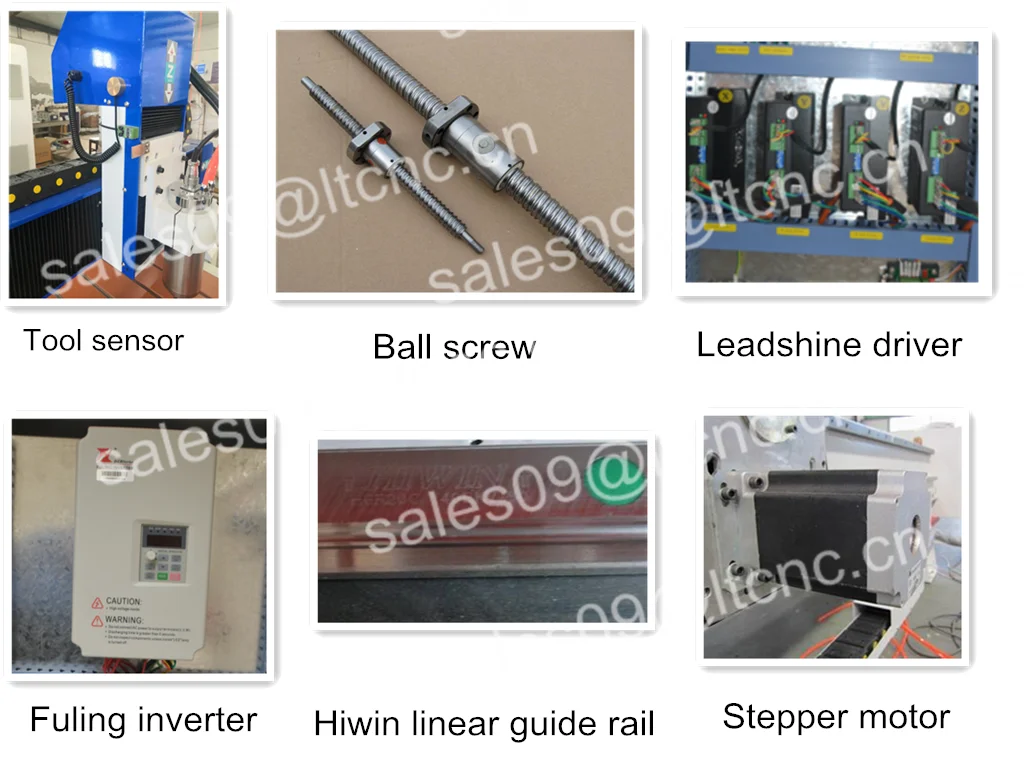

Machine details

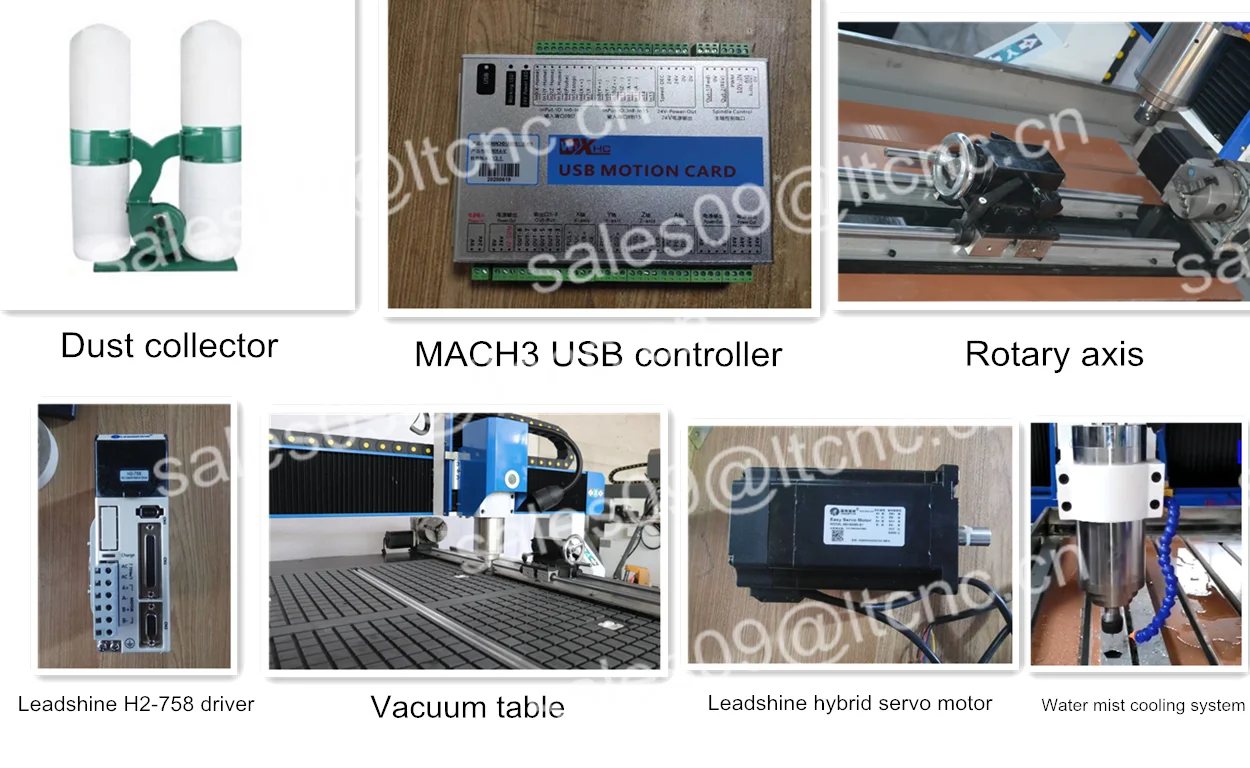

Optional parts
Certifications
Detailed Images
Sample
Our Service
1.Guarantee: 3 years guarantee of the whole machine+1.5 years warranty for motor and spindle
2.Software issue:
Supply technical support for machine lifetime free.
3.Hardware issue:
Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.
4.Support online:
our engineer give 1 hours to solve question online.
5.Training in LINTCNC factory:
We are able to train your staff after placed order in our factory for free.
6.Oversea service:
We are able to send technician to your workshop to do the installation and training. You will need bear the
related costs. (flight,visa,hotel,training costs, etc.)
