5 in 1 Digital Heat Press Transfer Machine and 34" Vinyl Cutting Plotter With Artcut Software
Introduction
This 5 in 1 heat press machine can be used for T-shirts, caps, ceramic plates, ceramic tiles, mugs, coasters, mouse pads, jigsaw puzzles, lettering, other misc. fabrics & materials. It can transfer colorful pictures and characters of sublimating and dissolved printing ink onto ceramics, glasses and textiles such as cotton, flax, chemical fiber, nylon, etc. This all-in-one press includes flat platen, mugs and plates.The swing-away heat press boasts all of the must-have attachments. It has a built-in coated 12" x 15" (38X30cm) heat platen with a full range of heating coils to allow for consistency throughout its surface.The digital timer control is adjustable up to 999 seconds. The features a digital temperature gauge ranging from 0 - 250ºC (about 430ºF).
This 34" vinyl cutting plotter has a contour cutting function and is used to cut all kinds of pictures, letters, and similar materials on self-adhesive vinyl sticker.This machine is perfectly suited for cutting a variety of material including adhesive vinyl, hard paperboard, sandblast stencil,mask material and much more.It has floor stand,new 34 inch Vinyl Cutter,three connectivity options:Parallel,Serial,and USB,USB connection is accomplished through serial conversion,3 Blades included,Pen adapter (use to plot instead of cut),Artcut Software.
Features

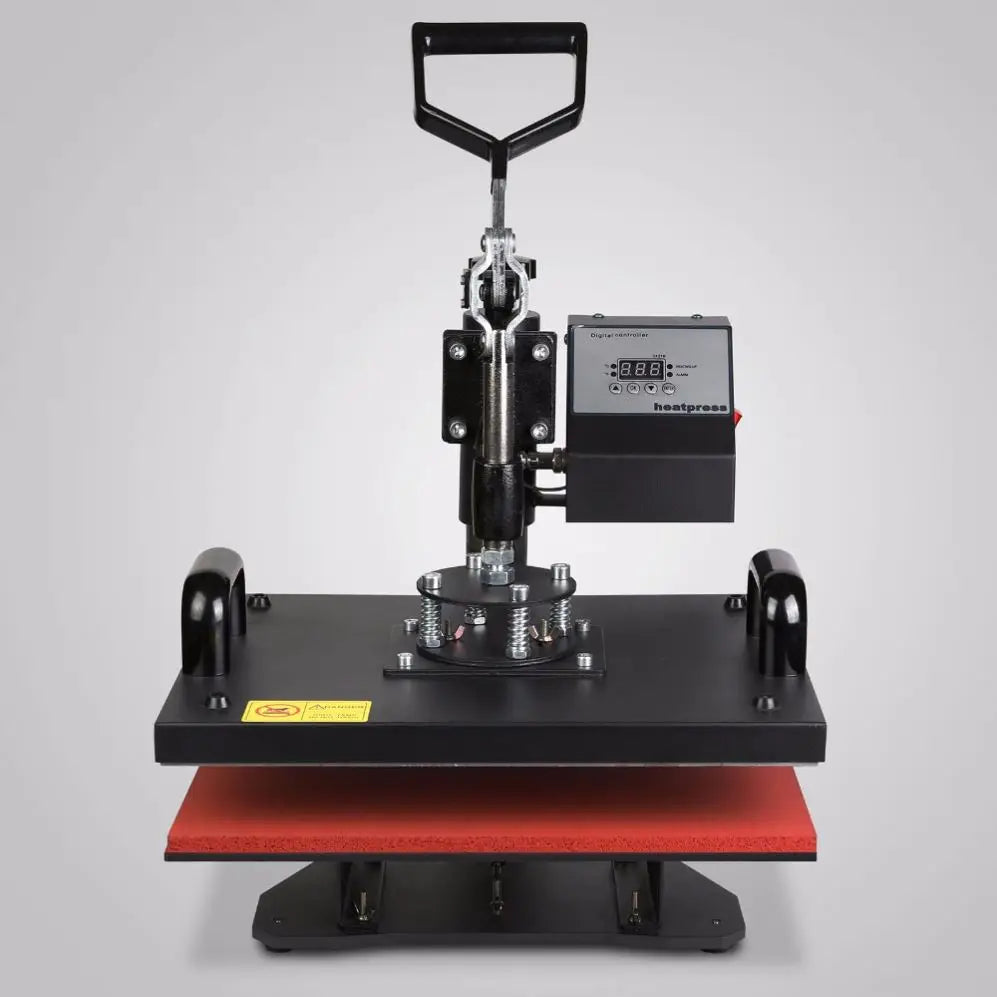

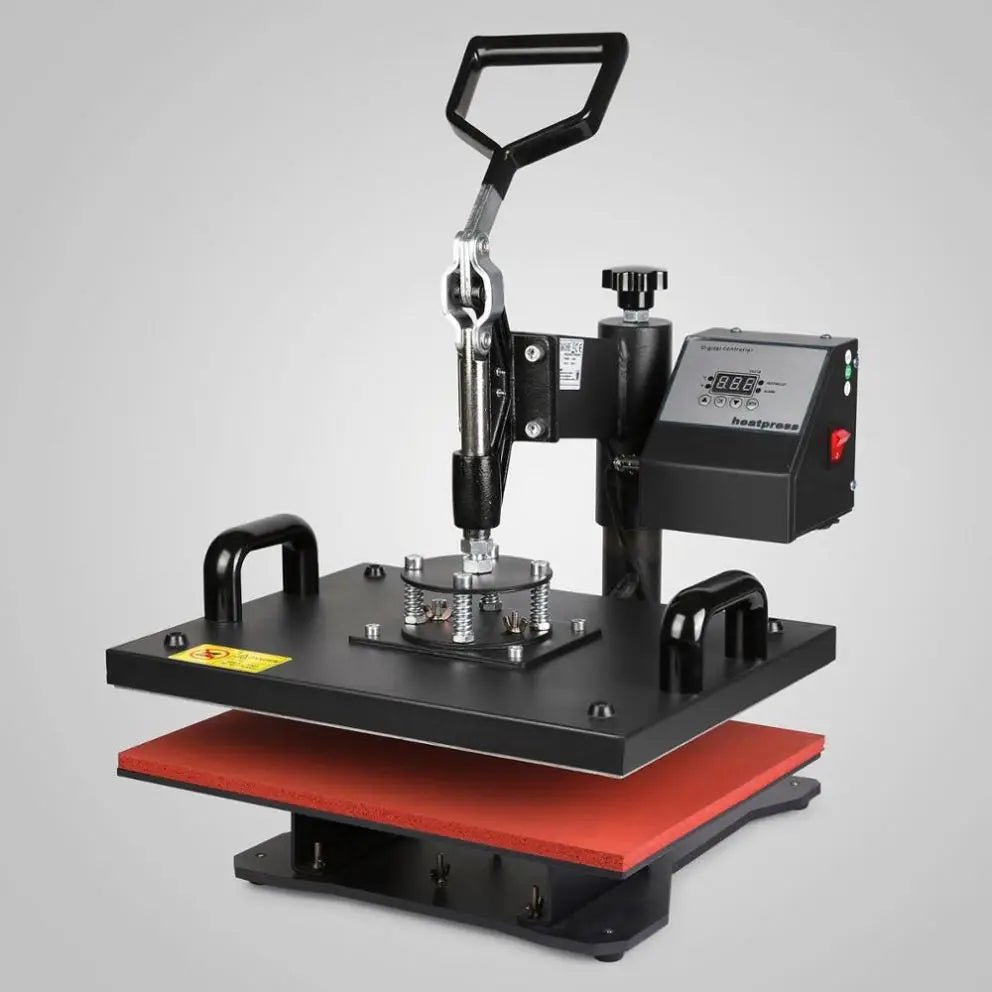

5in1 Heat Press Transfer
- Large 12" x 15" (38X30cm) transfer element
- Digital LED temperature and time controller
- Full 360-degree rotation of swing-away design
- Fahrenheit and Celsius scale are selectable
- Full-range pressure-adjustment knob
- Platen press element
- 2 4/5" Long arm handle
- Detachable lower platform
- Adjustable multi-spring balancer
- 4/5" thick heating board
- Upgraded aluminium alloy cradle
- Metal and plastic construction
- Built-in fuse for safe using
- Adjustable feet for unevenly floor

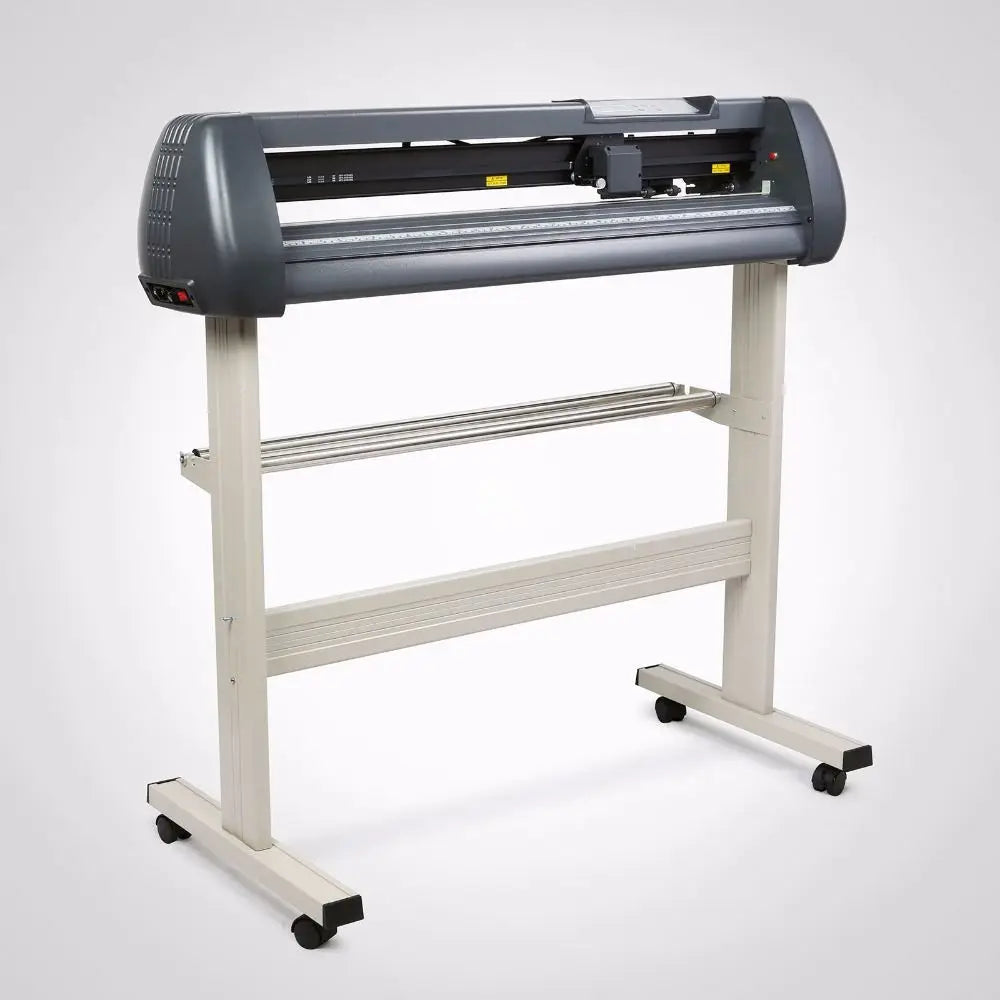

34" Vinyl Cutter Plotter
- Three pinch-rollers can be adjustable on the guide rail according to different paper width
- Professional blade holder gives you access to the most economical blades available
- Adjustable digital force and speed to handle the cutting process
- Inertial rotating blade holder enables more accurate and high quality cutting
- Emergency stop/start feature allows you to stop cutting and restart
- Updated design allows adjustment of cutting force and speed while working
- Auto memory of blade force and speed adjustable at any time
- Backlight LCD display for easier handling the working process
- Comes with Artcut Software
- Compatible with Windows 10, VISTA, XP. USB interface
- Superior ball-bearing dual roller media system allows you to place material on top of rollers rather than putting roller material each time
- USB connection is accomplished through serial conversation to support the long-distance data transmission
Technical Specifications
5in1 Heat Press Transfer
| Temperature range | 32-430ºF(0-250ºC) |
| Timer control | 0-999 seconds |
| Adjustable height | 13 1/2" to 17" |
| Wattage | 1400W |
| Power input | 110V or 220V |
| Cord length | 4.5' |
| Dimension (w/ platen press) | 15 1/4"L x 15"W x 17"H |
Five Elements:
Platen Press (telfon-coated): 12" x 15" (38X30cm)
Hat/Cap Press: 6"x 3" (curved)

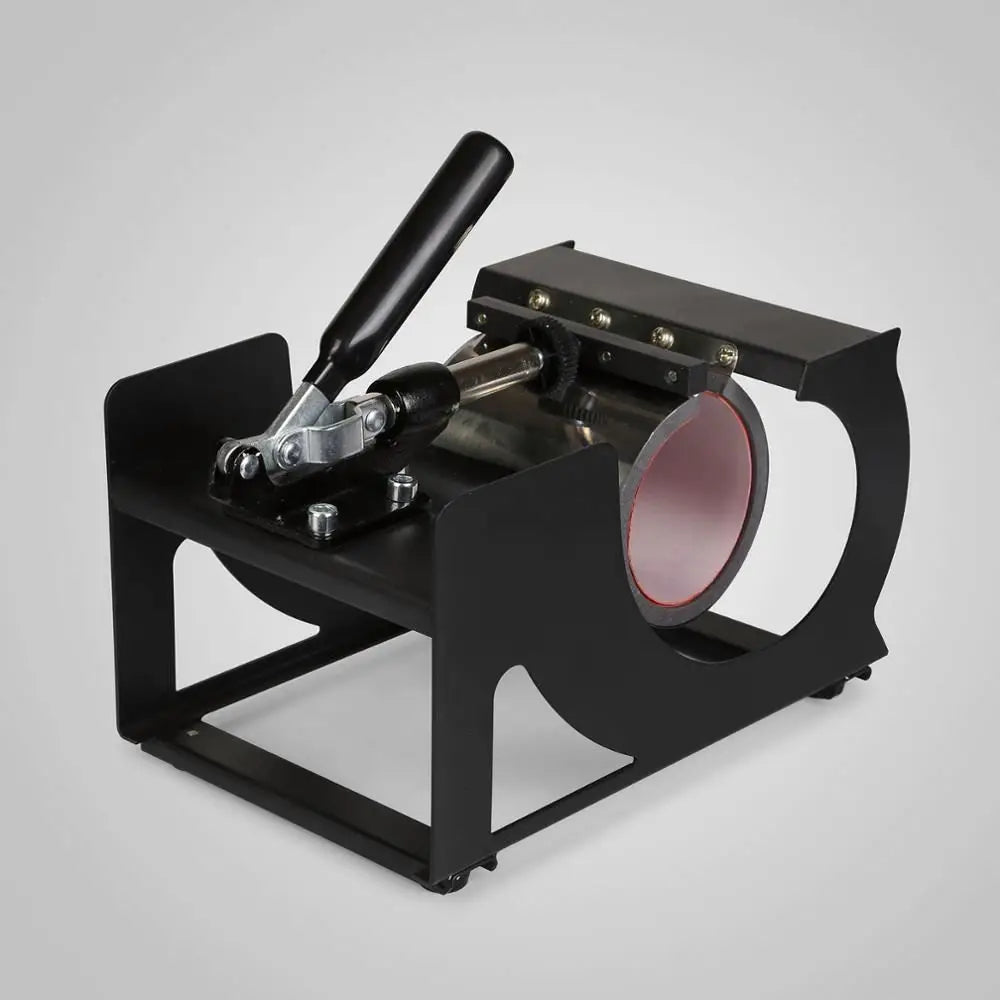

Mug Press: 3"-3.5" diameter (11OZ)
Plate Press #1: 5" max diameter
Plate Press #2: 6" max diameter
34" Vinyl Cutter Plotter
- Size:34" (870mm)
- Blade Types:Standard Roland blades and compatible blades
- Comparison - Notes:Higher quality than MH Series
- Driving Method:Stepper Motor
- Interface:Serial Port & USB2.0
- Max Cutting Width:31.44 inches (800mm)
- Max Feed Width:34.68 inches (880mm)
- Max Pressure:500 g
- Max Speed:0.48-31.50 Inch/s (10-800mm/s)
- Memory:1MB - Recyclable
- Number of Pinch Rollers:Two (2)
- Repetition Accuracy:0.005IN (0.127 MM)
- Resolution:0.001Inch/step (0.0254mm/step)
- Power Requirements:110-220V AC 50/60Hz Auto-switching (worldwide)
- Contour Cutting:Yes

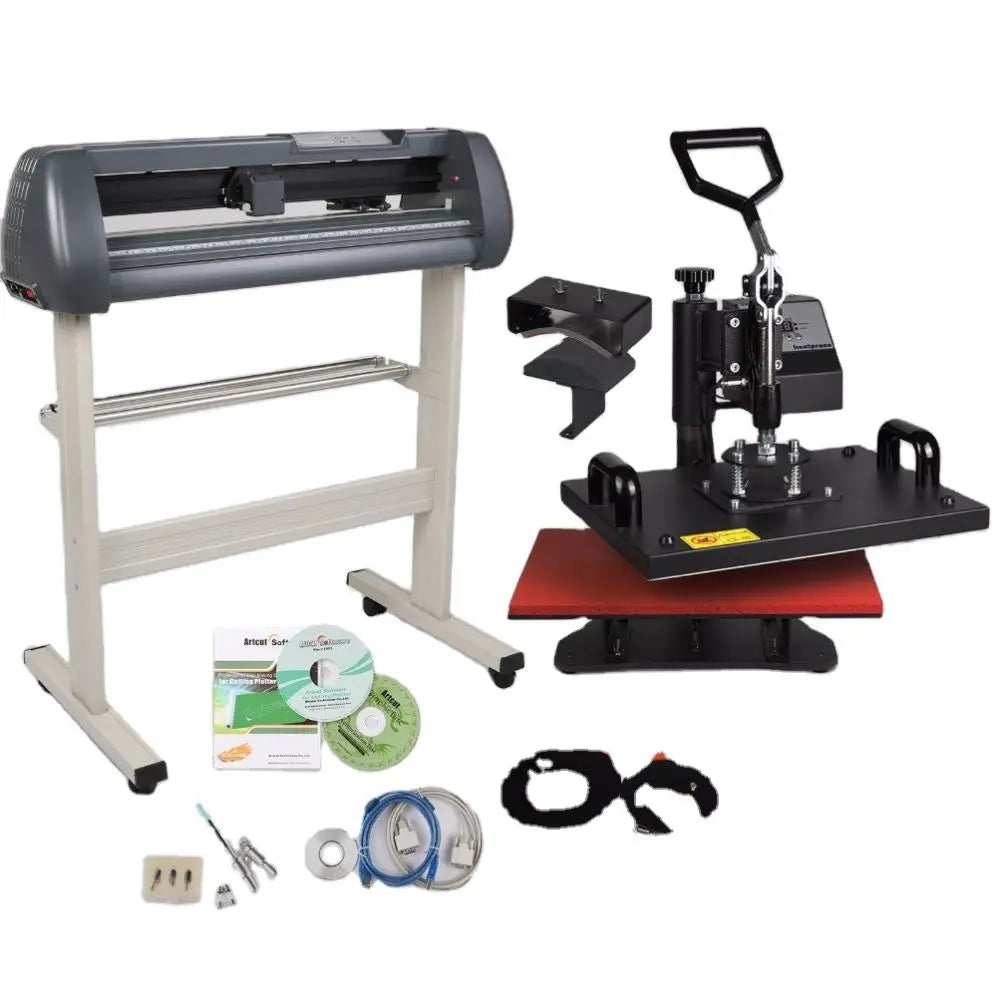

Packing list
1 X Fully-assembled machine with platen press
1 X Hat press
1 X Mug presses
2 X Plate presses
1 X Removable silicone pad and cotton pad
1 X Operating Manual
1 x 34" Cutter Plotter
1 x User's Manual
1 x Artcut Software
1 x Power Cord
1 x Serial Cable
1 x Blades Holder
1 x Pen Holder
1 x Driver CD
1 x Stand
3 x Blades
T-shirts, cups and hats are NOT included
