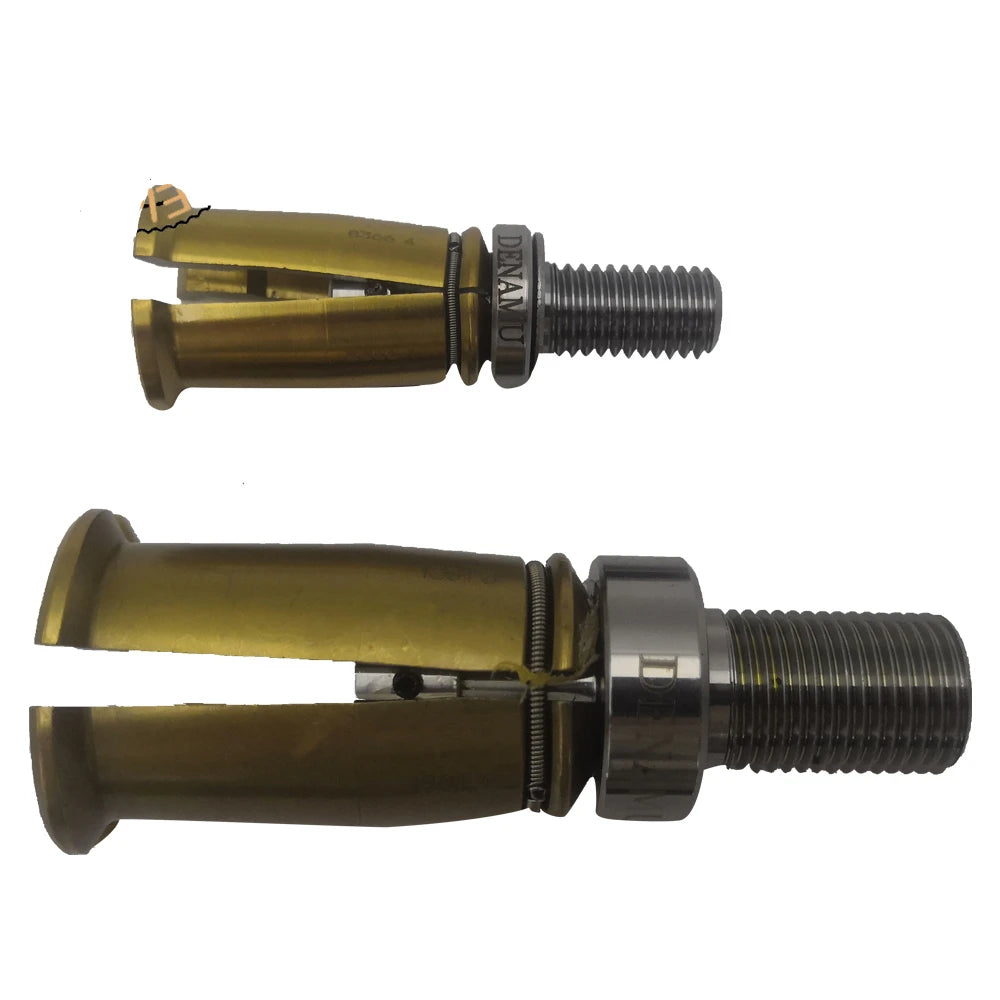

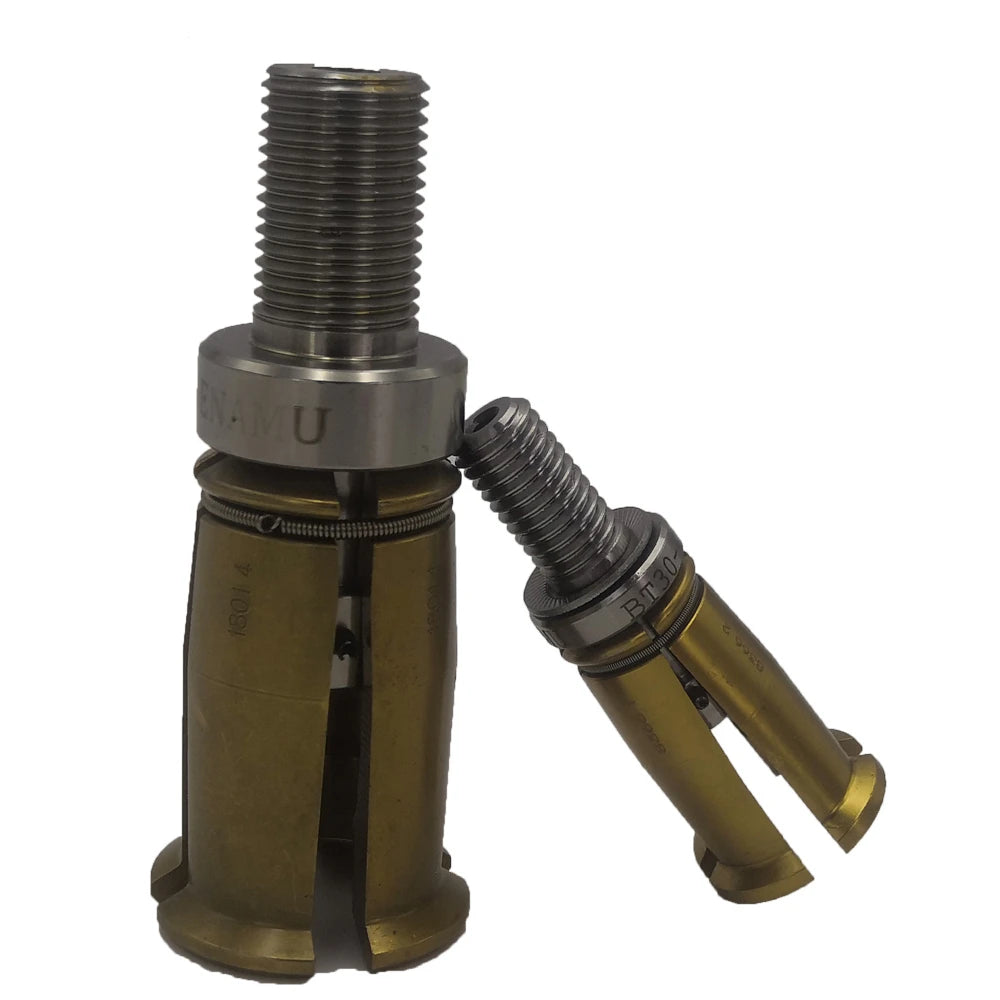

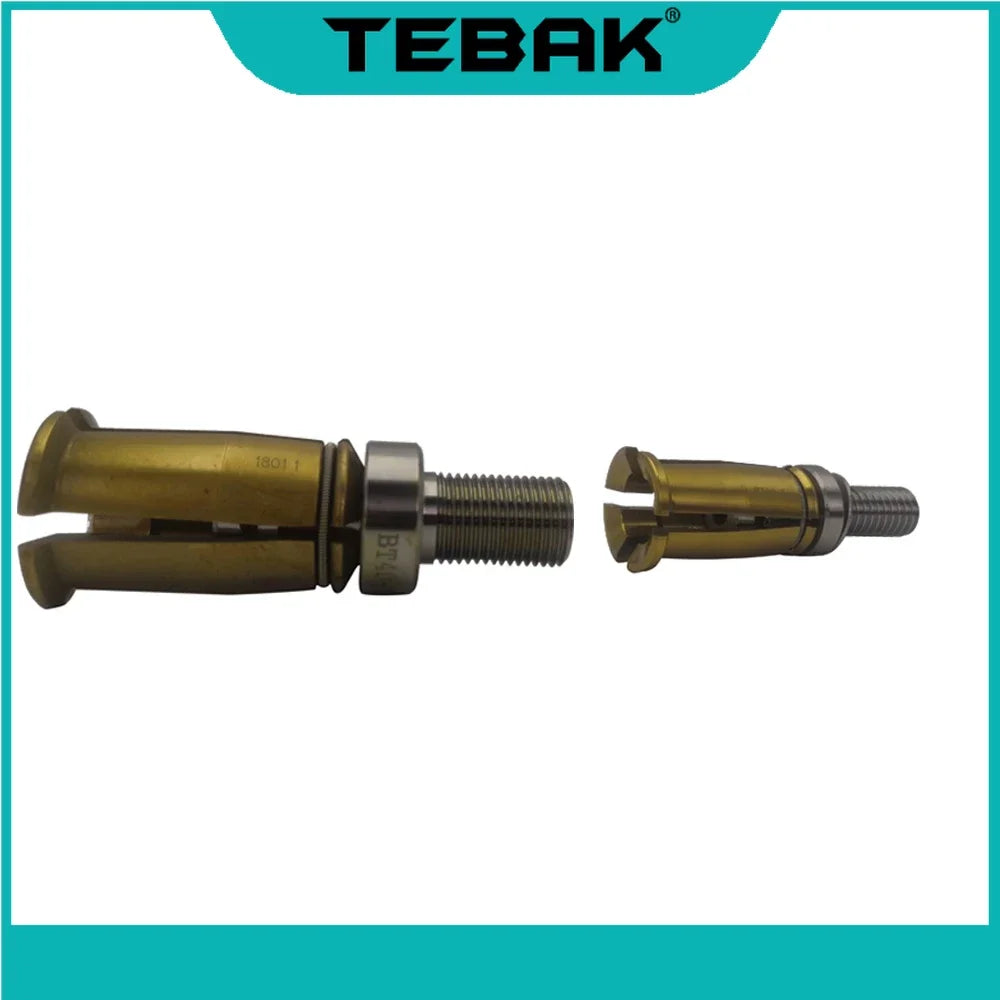

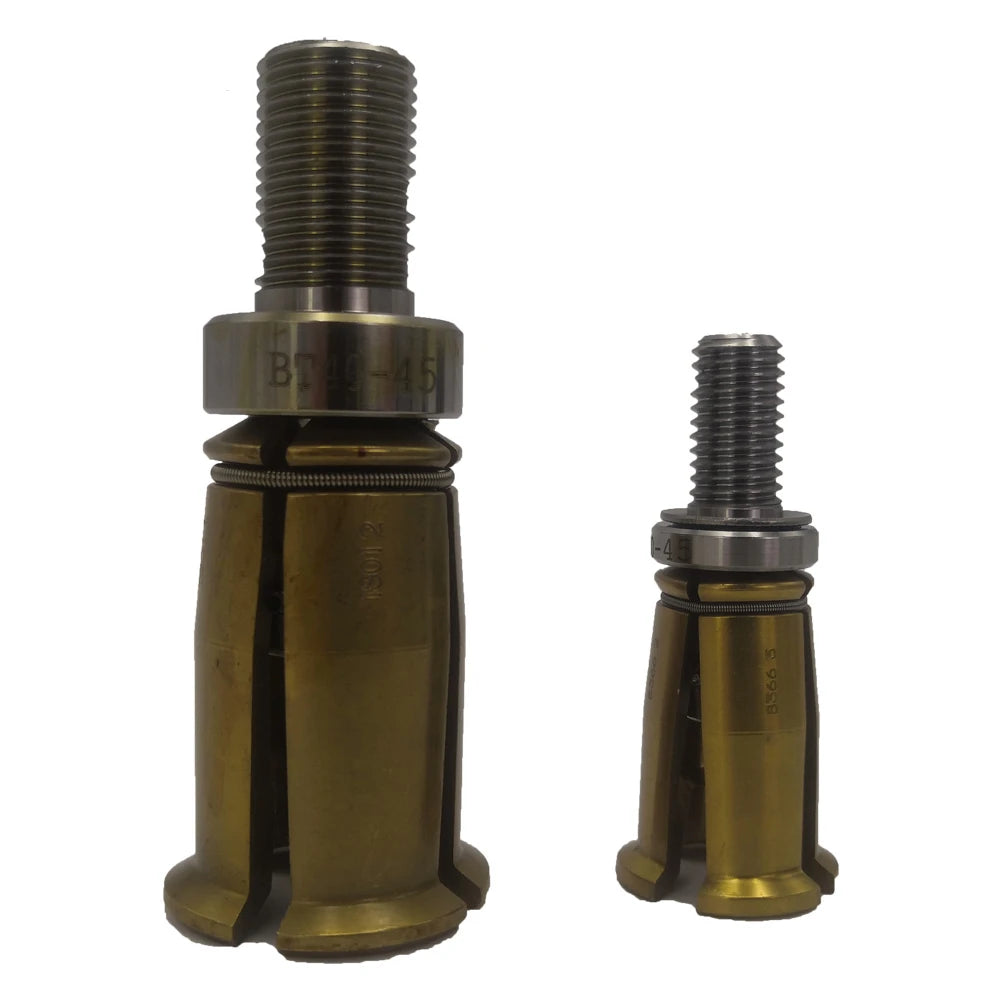

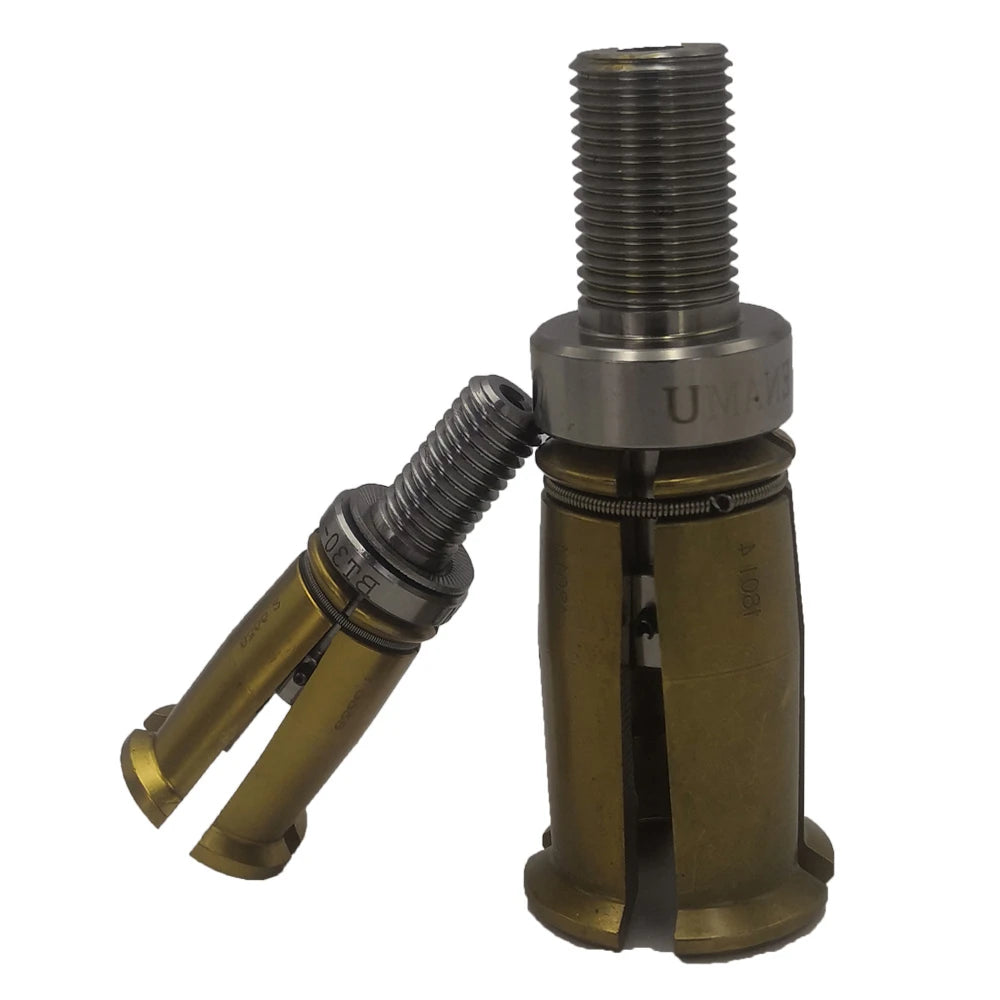

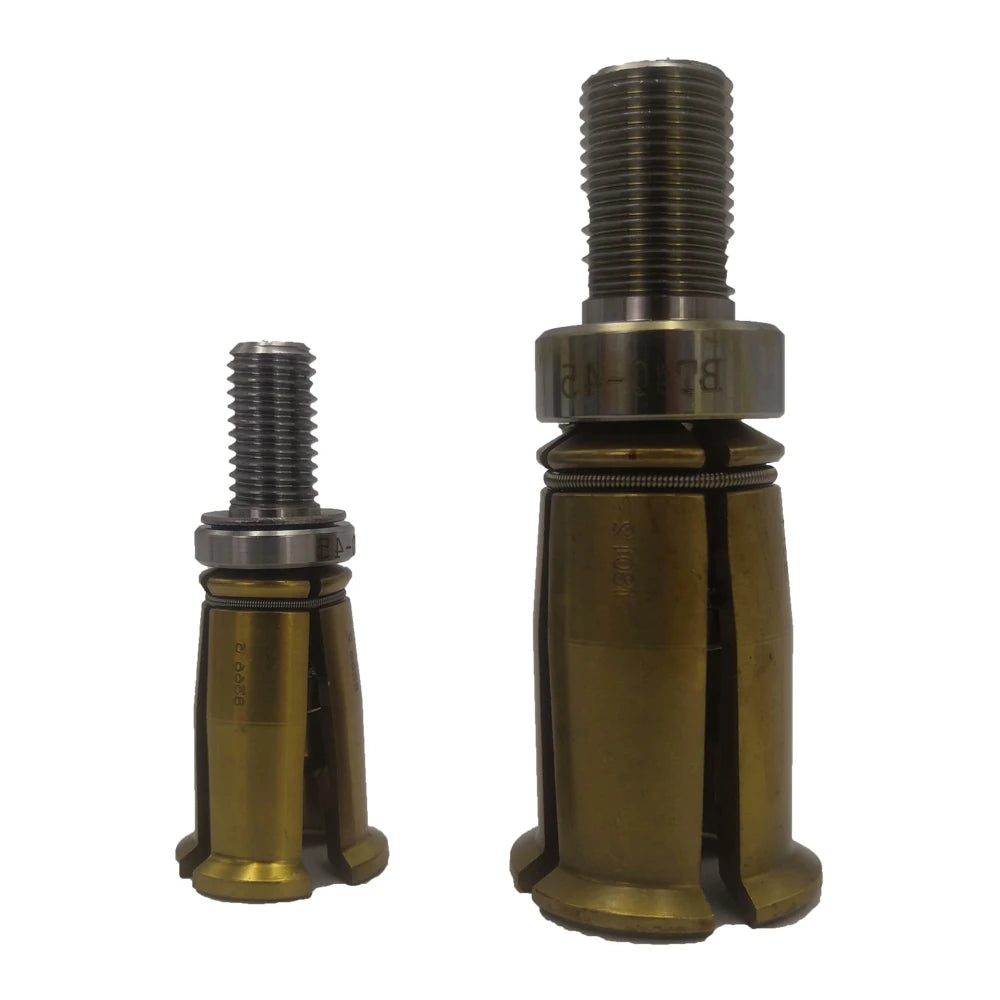

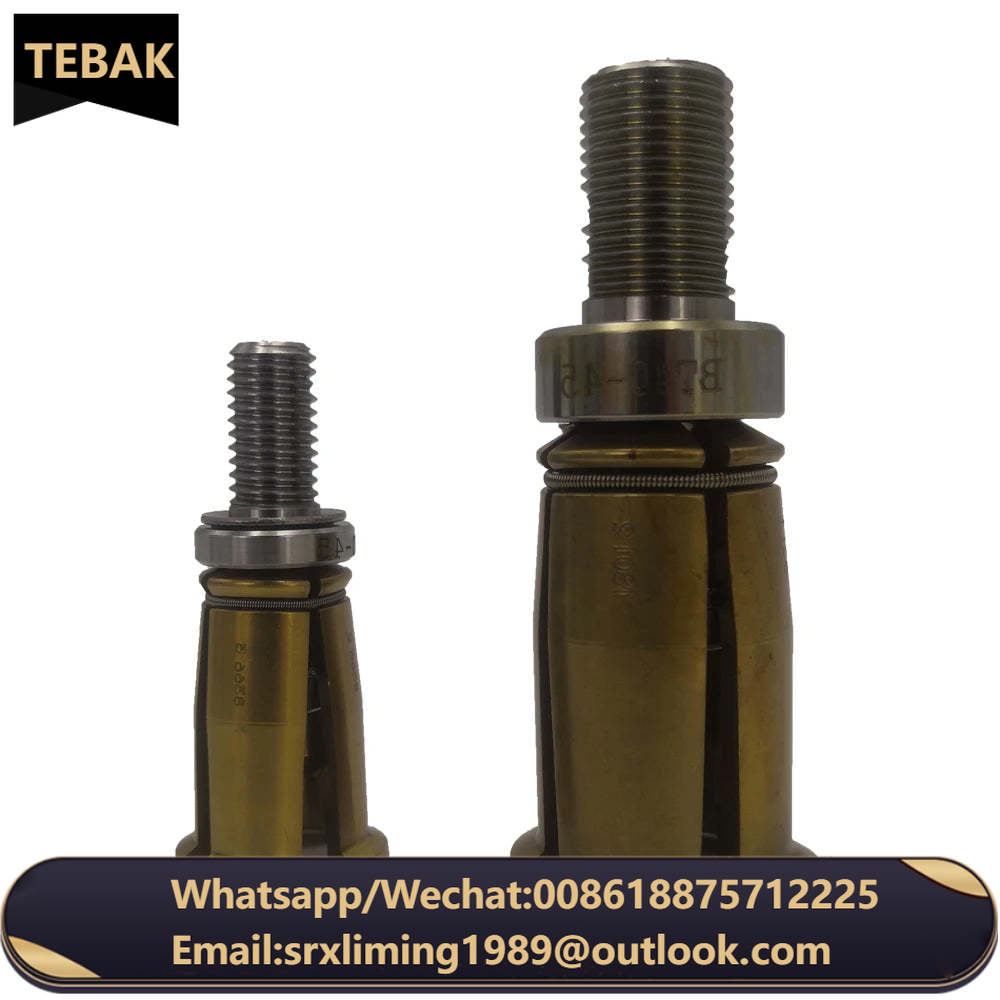

4 Petal Clamp Pull Claw High Accuracy BT30-45/BT40-45 degree CNC Milling Machine Spindle ToolM10 Male Thread

Package List:

1 x Pull Claw-(BT40-45/BT30-45)

Feature:

1. Used for 45 degree external thread CNC spindle, the pull claw is easy to use in the practical life.
2. With position holding function, the spindle clamp is entitled with high performance according to strict rule.
3. Via special processing section, it can keep wear prevention, which practical and useful to use.
4. After many inspections before leaving the factory, the quality is guaranteed, you can use it with confidence.
5. Entitled with pratical adoptability, its high quality can keep its high performance for a long time.

Specification(BT40-45):

Item Type: Pull claw
Model: BT40-45 °
BT-40 spindle pulling claw, four-lobed claw for MAS403-1982 Bt / PT1 (45 °)
Spindle Taper: 7:24
Rated Rate: 8000 (rpm)
Maximum Rate Temperature Rise: 300 (℃)
Dynamic Equilibrium: 3 (mg)
Maximum Rate Noise: 10 (db)
Taper Hole Oscillation: 0.002 mm / 0.000079 in

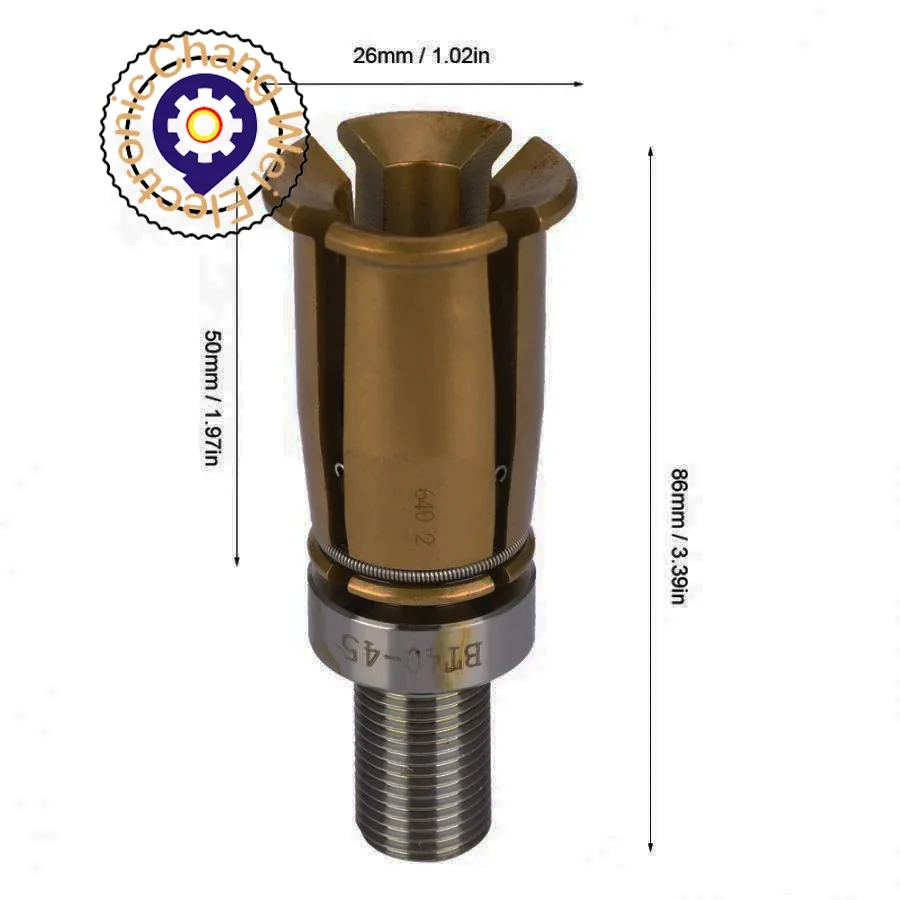

Overall Length: Approx. 86mm / 3.39in
Jaw Length: Approx. 50mm / 1.97in
Flange Outer Diameter: Approx. 26mm / 1.02in
External Thread: M approx. 16 x 1.5mm / 0.63 x 0.06in
Equipped with Pull Studs: 45 ° for 45 ° externally threaded CNC spindle

Specification(BT30-45):

Specification:

Item Type: 4 Petal Clamp Pull Claw
Model: BT30-45°

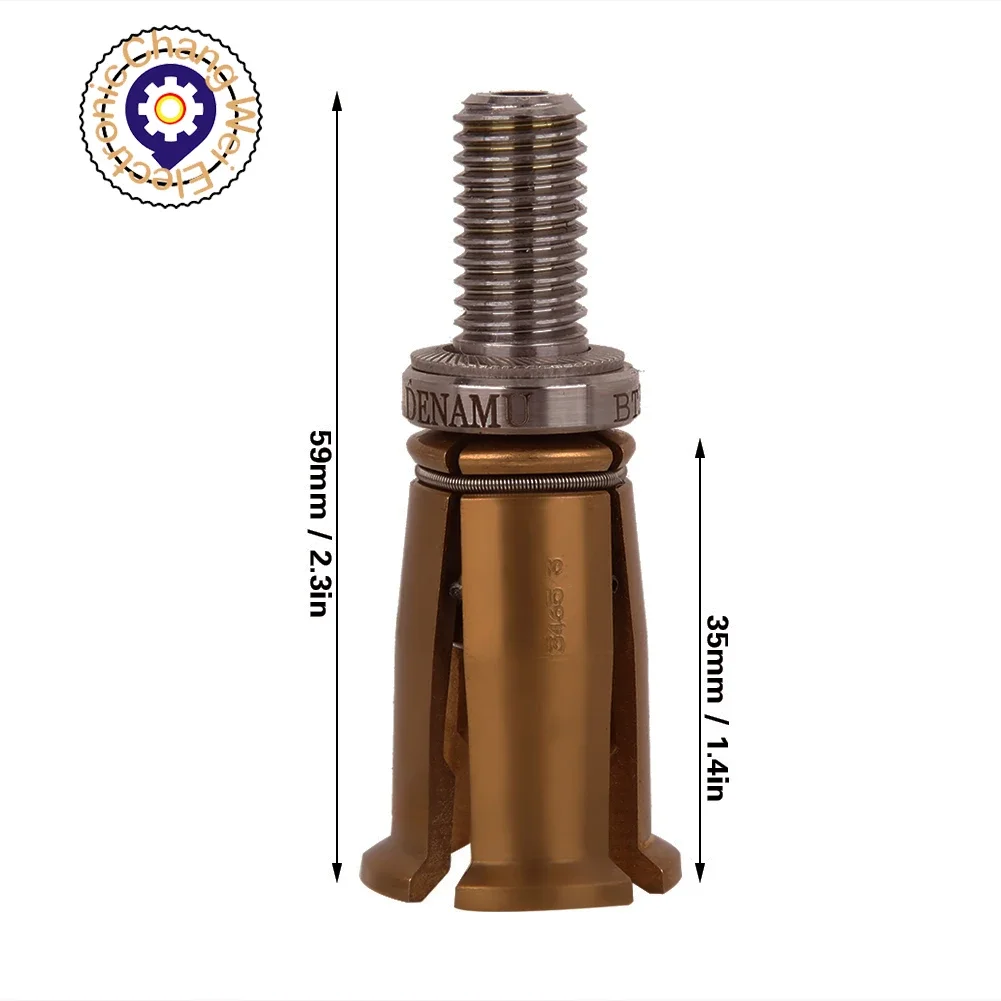

Total Length: Approx. 59mm / 2.3in
Petal Length: Approx. 35mm / 1.4in
Flange Outer Diameter: 17.5mm
Male Thread: M10
With Pull Studs: 45°
BT-30 Spindle Pulling Claw, 4-Petal Claw, MAS303-1982 BT/PT1
Spindle Taper: 7: 24
Rated Speed: 12000 (rpm)
Maximum Speed Temperature Rise: 300(℃)
Dynamic Balance: 2(mg)
Maximum Speed Noise: 8(db)
Taper Hole Oscillation: 0.002(mm)
