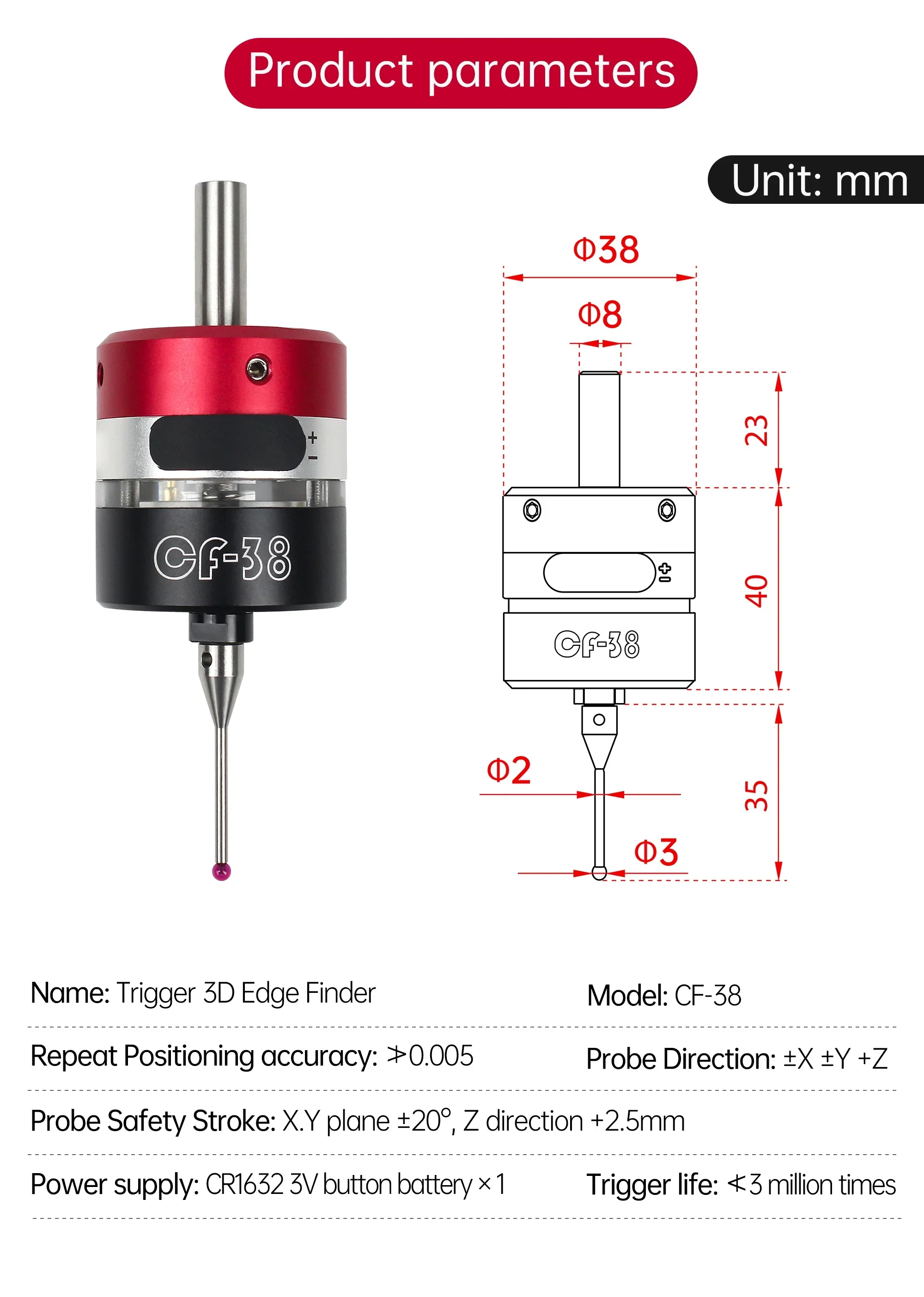

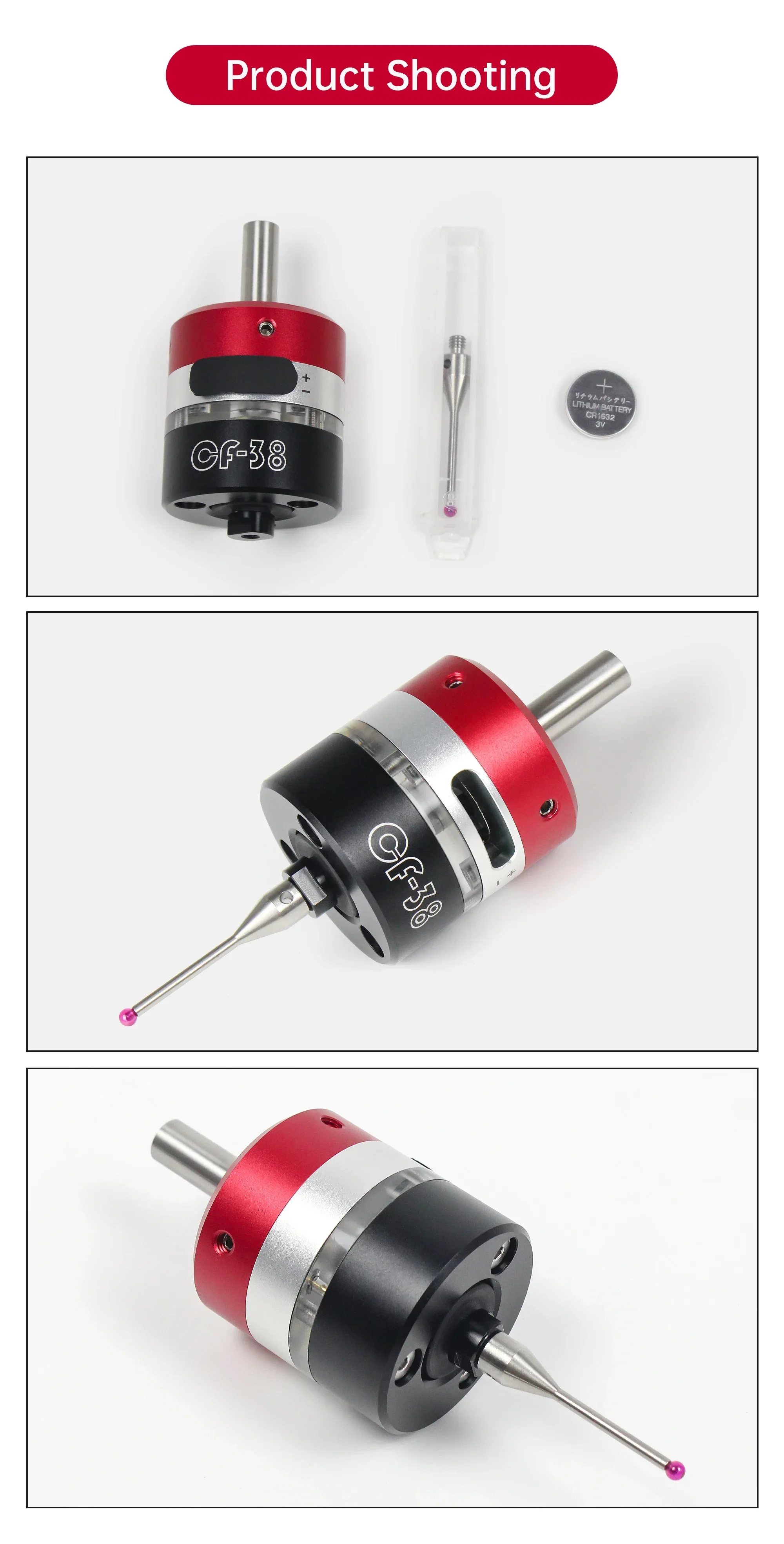

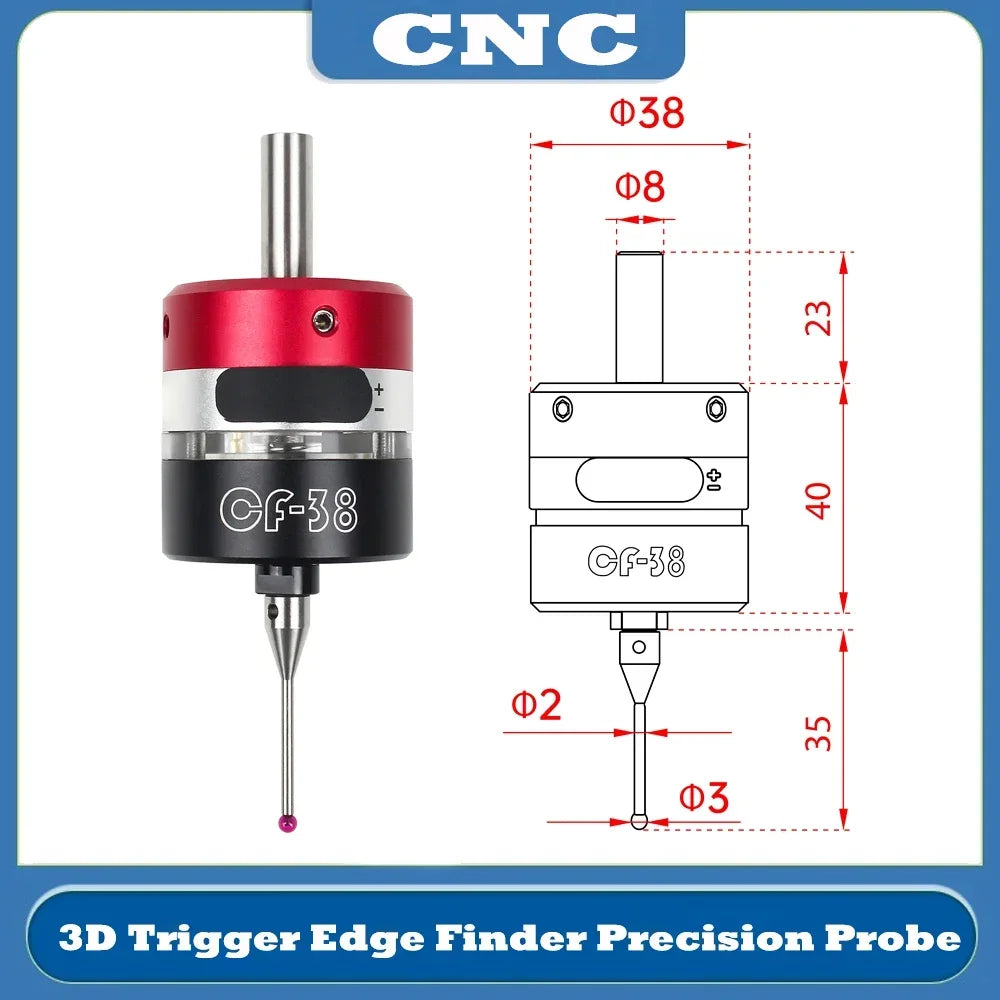

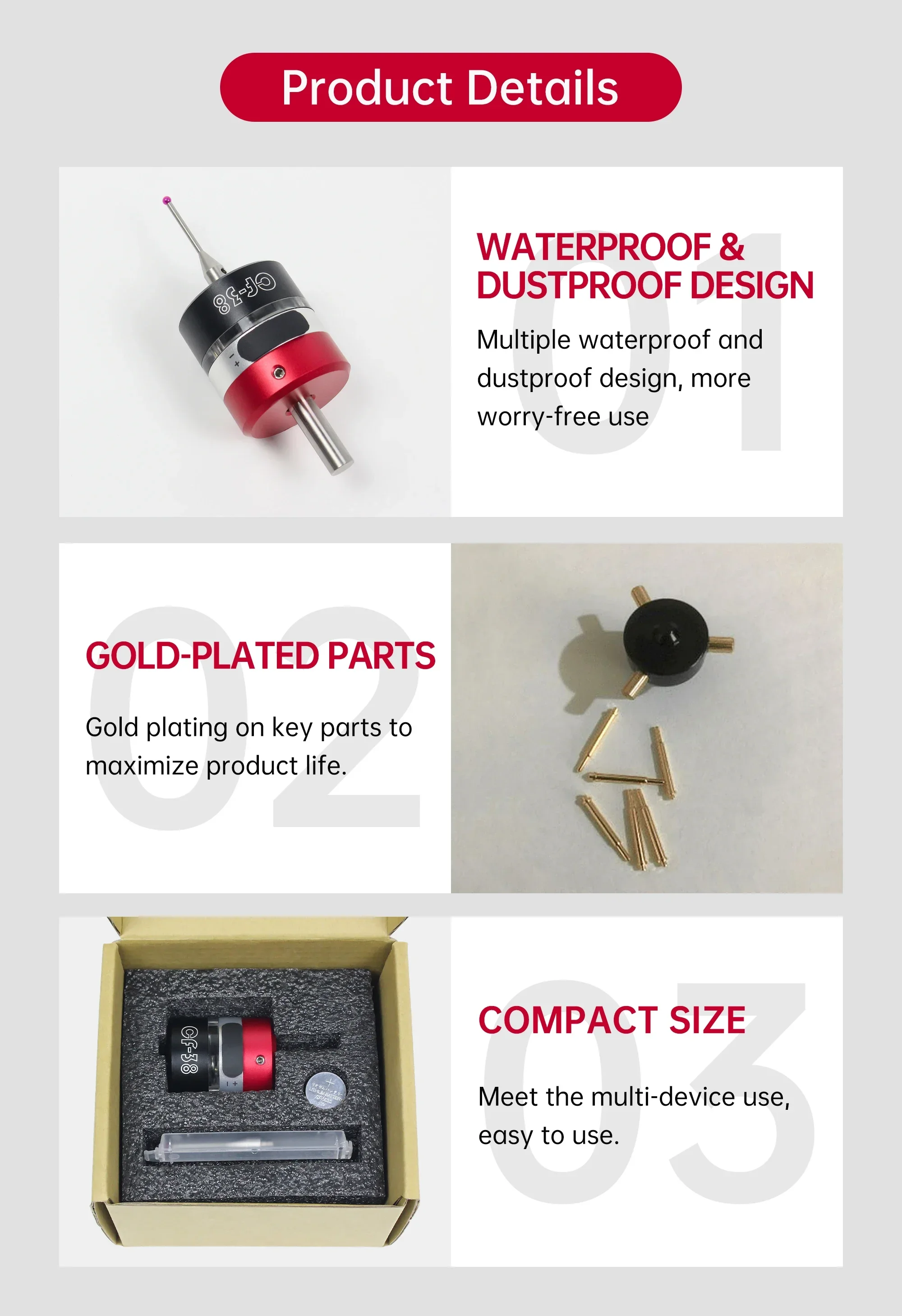

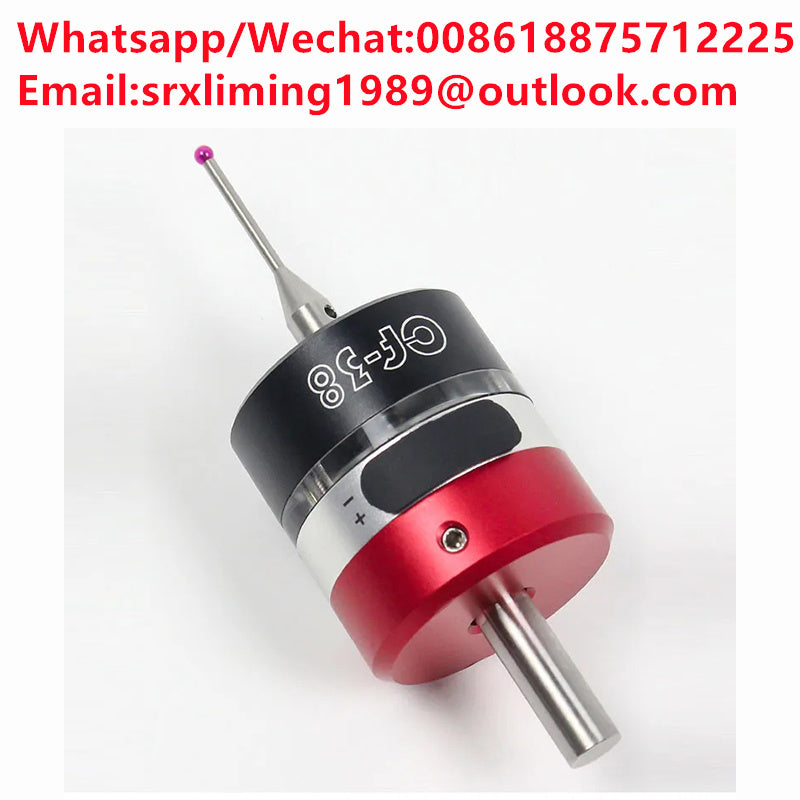

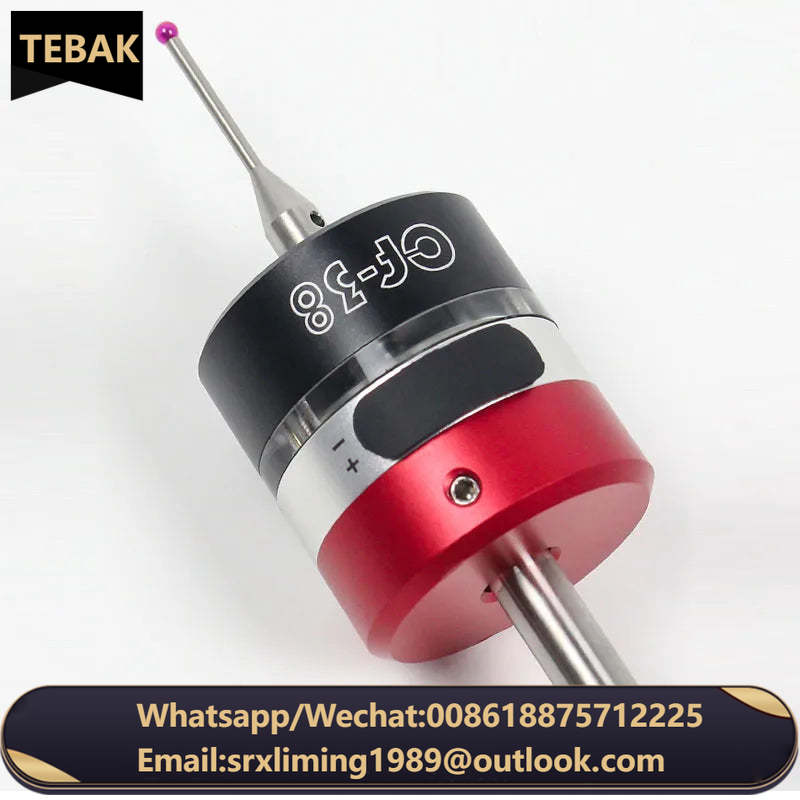

Product Name: Trigger 3D Edge Finder

Item model number: CF-38

Repeat positioning accuracy: ≯0.005

Probe direction: ±X ±Y +Z

Probe safety stroke: X.Y plane ±20°, Z direction +2.5mm

Trigger life: ≮3 million times

Power supply: CR1632 3V button battery × 1

Measurable insulating material

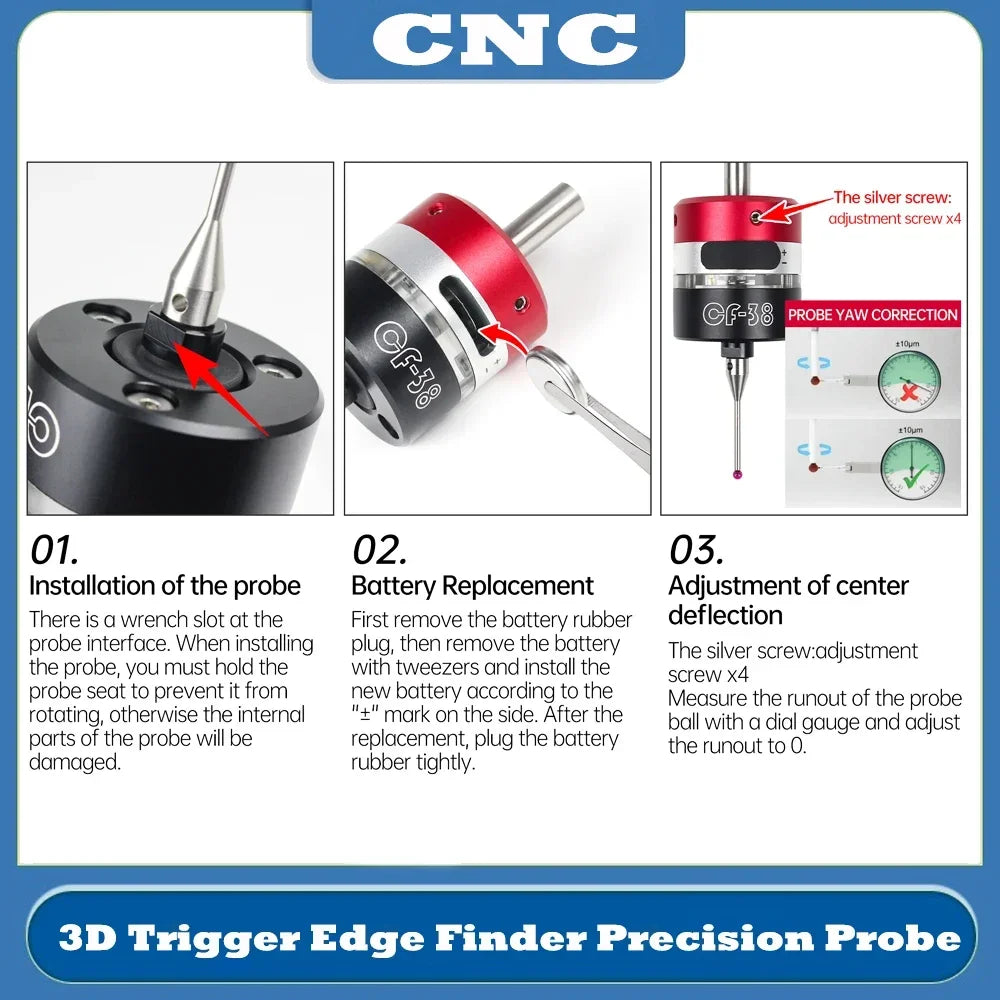

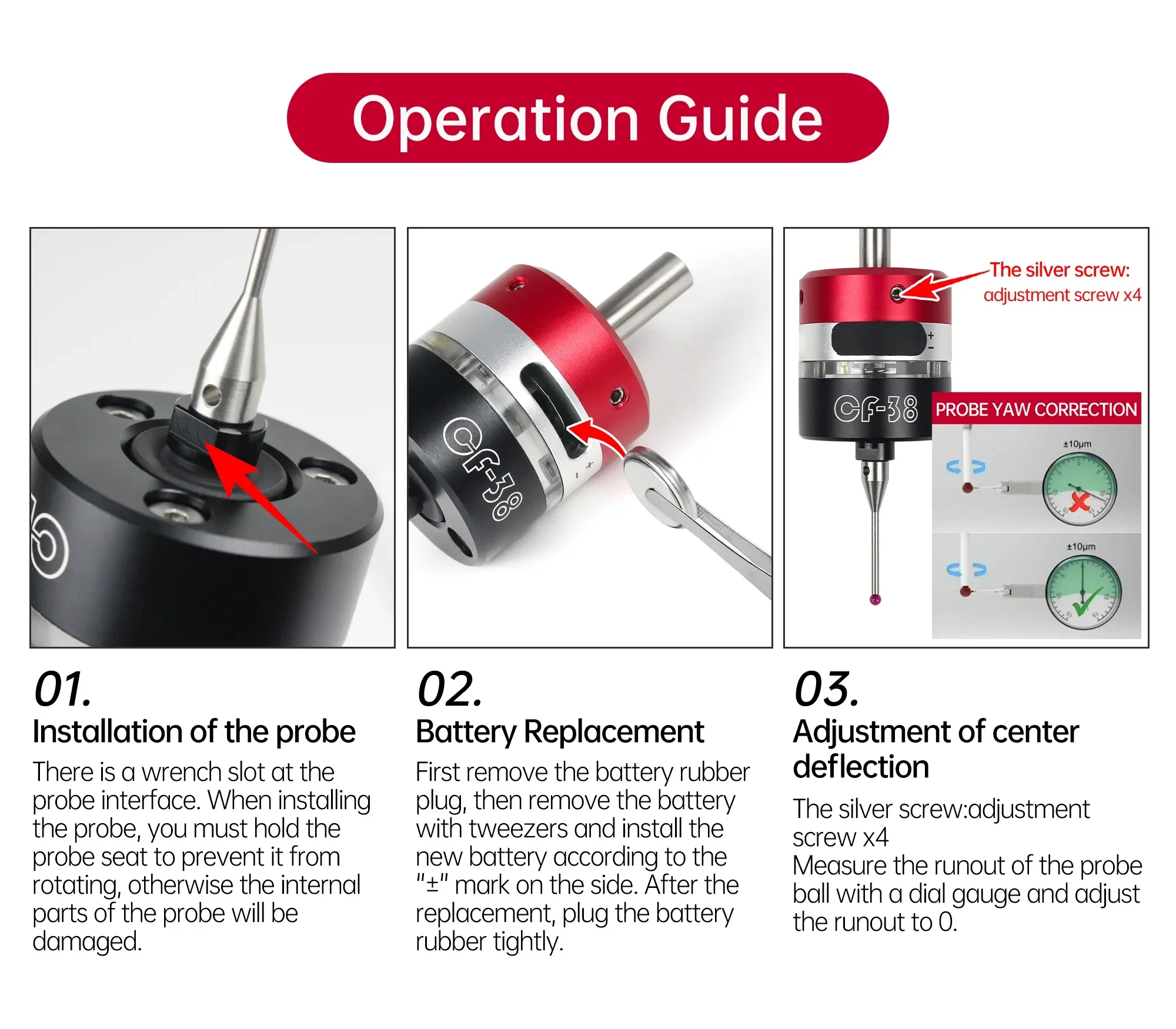

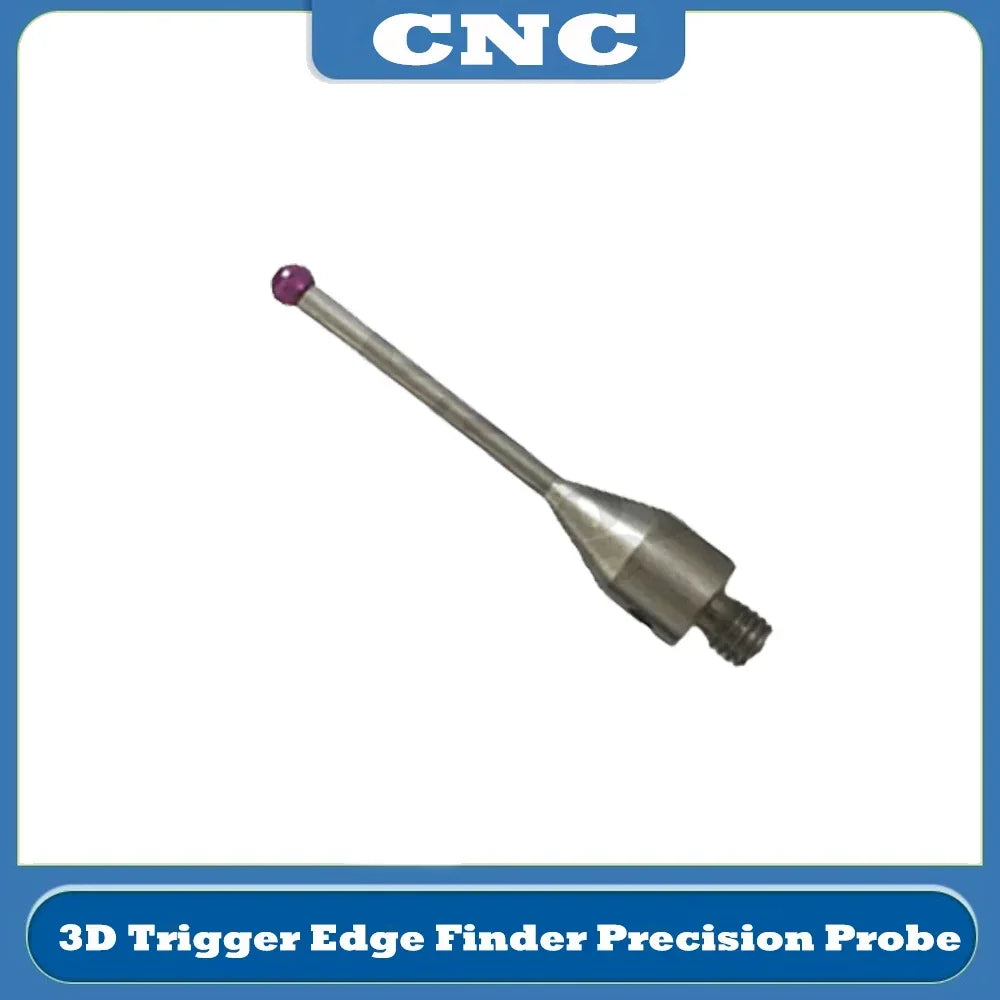

1. Installation of the probe

As
shown in the figure below, there is a wrench slot at the probe
interface. When installing the probe, you must hold the probe seat to
prevent it from rotating, otherwise the internal parts of the probe will
be damaged.

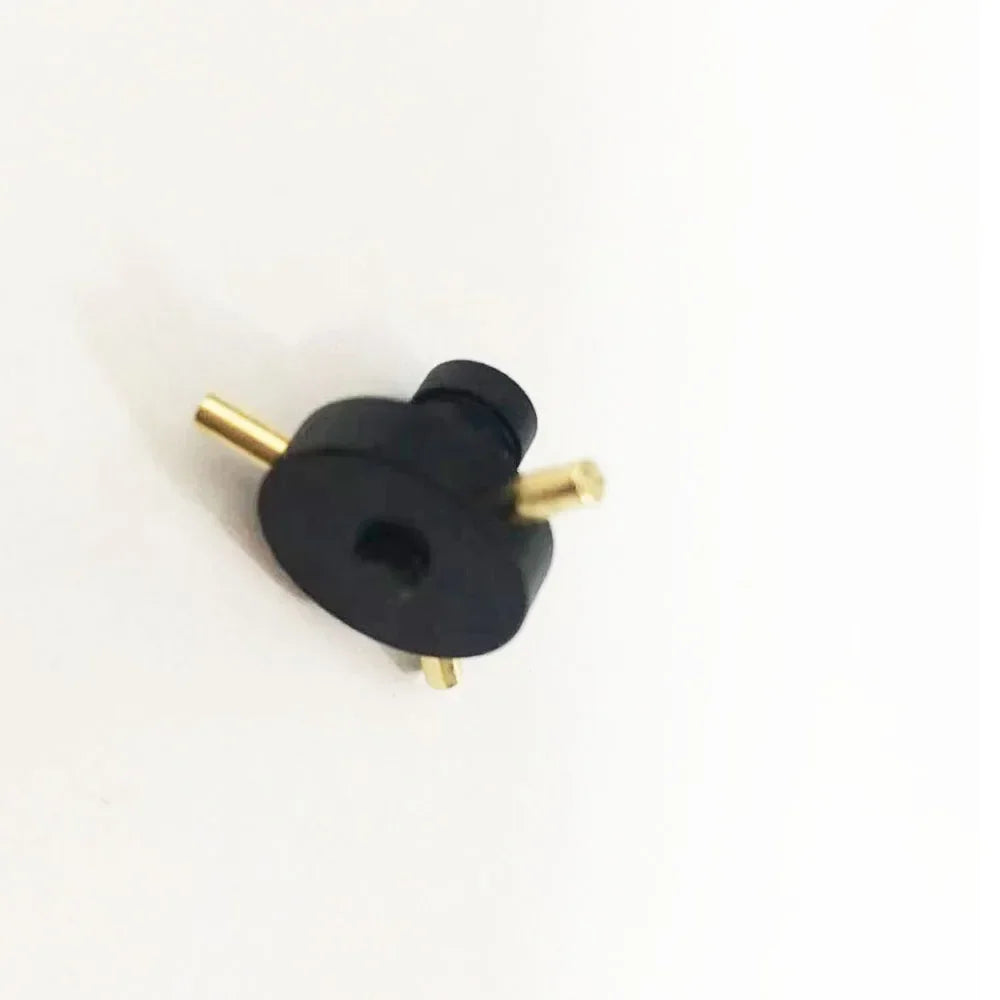

2. Battery replacement

As
shown in the figure below, remove the battery plug, remove the battery
with tweezers, replace the battery with a new one, and install the
battery according to the "±" mark on the side. After the replacement,
plug the battery plug tightly.

Installation of the probe:

There
is a wrench slot at the probe interface. When installing the probe, you
must hold the probe seat to prevent it from rotating, otherwise the
internal parts of the probe will be damaged.

Battery replacement:

Remove
the battery rubber plug, remove the battery with tweezers, replace the
battery with a new one and install the battery according to the "±" mark
on the side. After the replacement, plug the battery rubber plug
tightly.

Adjustment of center deflection:

The silver screw is the adjustment screw × 4

Use a dial gauge to measure the runout of the probe ball and adjust the runout to 0.
